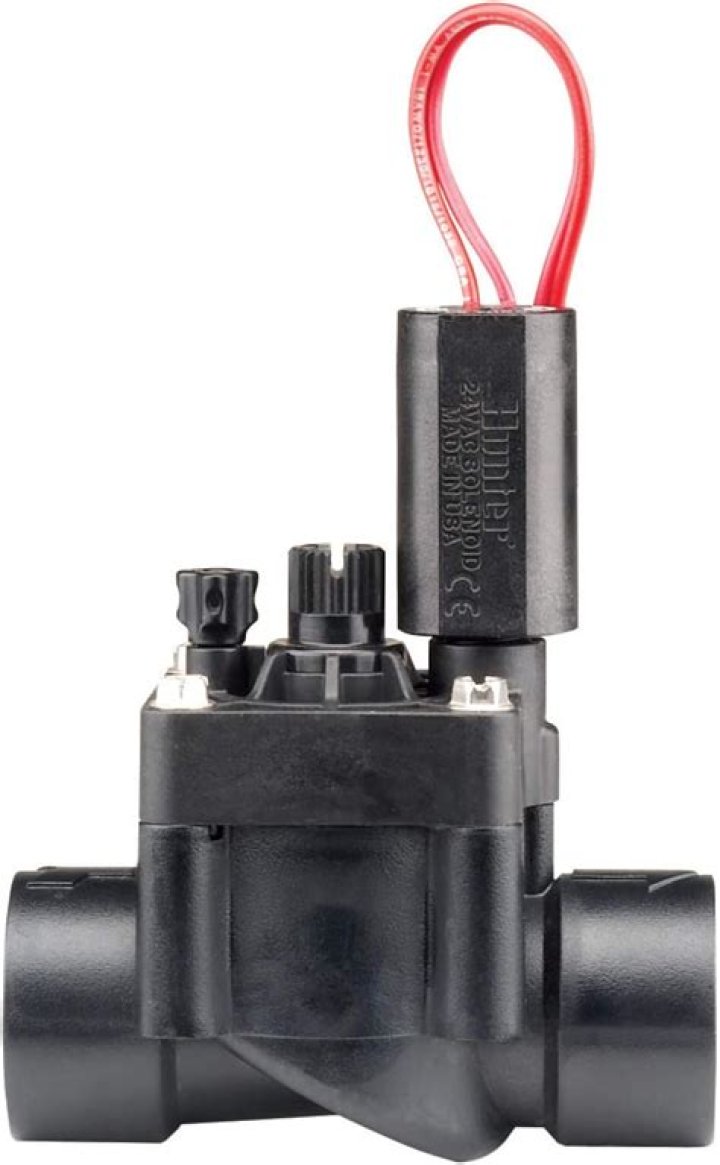

Today, the most commonly used sprinkler control valves are electric powered, using 24 volt alternating current (VAC) solenoid valves. These electric solenoid valves are turned on and off by an irrigation controller, which eliminates the need for you to constantly open and close a valve manually.
What voltage are sprinkler valves?
Sprinkler valves are operated electronically using low voltage 24v power generally of 18 gauge wire for residential, and 14 gauge wire for commercial. Valves require one 24v power wire for each valve and a commonly connected “common” wire shared between each valve.
How many amps does a sprinkler valve draw?
Many irrigation valve solenoids have an inrush current (the sudden surge of current, measured in amps, occurring when the solenoid is first energized) anywhere from . 35 to . 70 amps. When the valve is powered, the inrush current will reduce to a hold current, which has a lower amperage value between .
Are Rainbird valves AC or DC?
Electrical Terms Most irrigation solenoids operate on AC voltage. Rain Bird voltage specifications are 117 VAC ± 10% (105 – 129) volts. DC volts (VDC) – Direct Current, the normal source is a battery.Are solenoids AC or DC?
Solenoids are the most important components used in solenoid valves to control the flow of liquids and gases. Solenoids are electromechanical devices that convert AC or DC electrical energy into linear motion.
Is irrigation low voltage AC or DC?
Irrigation systems utilize a 24VAC electronic signal to initialize a valve’s solenoid. Even though the system is low voltage, it is still always recommended a trained professional perform these tests.
Will an AC solenoid work on DC?
A holding coil, or solenoid, is a current operated device. It doesn’t care what voltage (AC or DC) is impressed on it as long as the voltage level does not exceed the voltage rating of its magnet wire insulation. As such, you can apply a DC voltage to an AC coil.
Do sprinkler solenoids have polarity?
A common question about solenoid valve coils is whether the electrical current polarity matters in a DC coil. Most coils with lead wires use the same color wire for both terminals and have no polarity markings. The answer is that polarity does not matter.Does polarity matter on a AC solenoid valve?
The simple answer is that polarity does not matter on solenoid valve coils. Typically, the lead wires will be the same color so you can connect the positive terminal to either of the two wires.
Do sprinkler systems have wires?When installing a sprinkler system, you will need to run electrical wire from the sprinkler controller to each sprinkler valve. … Use 16- or 14-gauge wire, which are larger, for longer distances.
Article first time published onDo sprinkler systems use a lot of electricity?
The controller of the irrigation system uses electricity to turn the valves on and off. A typical residential controller uses about 0.5 Kwh a day while a large commercial controller uses about 1.2 Kwh a day.
What is DC solenoid?
What is a DC solenoid? It is an electric part that emits an electromagnetic field through a copper wire to pull in a magnetic, movable iron core. When current flows through the wire, the iron core is attracted toward the fixed iron core inside the wire, constantly drawn to the space within the electric current.
Can a DC relay be used with AC?
To develop the required power, coil voltage would have to be increased to that value where sufficient current flows. In theory, then, AC can be used to operate a DC relay.
What happens when you mix AC and DC?
If accidentally AC line touches the DC line connected to the electronic circuit and components, the result may be bad smell smoke, flames or even worse. … In case of AC components when DC connected to it, it may not work properly (that’s why a transformer can’t be operated on DC voltage) or even start to smoke and burn.
Is a DC motor A solenoid?
An electric motor is an electric machine that converts electrical energy into mechanical energy. But so is a solenoid. So are piezoelectrics.
What is difference between AC and DC relay?
A Dc relay coil has resistance that limits the dc current. An AC coil relies on its impedance for governing the current. An AC relay will remain contact closed due to mechanical inertia and a little mechanical hysteresis and, the fact that an alternating north and south pole both attract the relay armature.
Can I plug AC to DC?
In many instances, yes. The central function of AC adapters is the conversion of mains current from AC to DC for electronic devices with a rechargeable battery.
Are sprinkler valves interchangeable?
It is also interchangeable with most brands of 24-volt automatic valves. This 24-Volt Solenoid replaces worn Orbit automatic valve solenoids. It is also interchangeable with most brands of 24-volt automatic valves.
How do you test a sprinkler valve solenoid?
- Turn off the water supply to the irrigation system using an isolation valve.
- Disconnect the solenoid wires from the controller.
- Using and multimeter test the number of ohms through the solenoid. 20-60 ohms – Good. …
- If solenoid tests Good, then the solenoid is OK.
How do you test a sprinkler wire with a multimeter?
Place one multimeter lead on the common wire and one on the tip of the zone wire to test resistance in the line. The reading should be about 20 to 60 ohms. If the reading is above this range, the wiring is cut or has a bad connection. If the reading is below this range, the solenoid may be bad.
How do you know if an irrigation valve is bad?
- Water not turning Off: If you notice that water is not closing off from the sprinkler, then there seems to be an issue in the diaphragm valve. …
- Leaks of water: …
- Broken Sprinkler Head. …
- Stuck Valve. …
- Wiring: …
- Irregular Watering:
Does a DC solenoid have positive and negative?
The solenoid is designed to operate on 24 volts AC which is supplied by the furnace. It does not require either a positive or negative connection since it should not be wired to 24 volts DC.
What happens if you reverse the current in a solenoid?
If the direction of current in a solenoid reverses, the magnetic polarity changes also. The magnetic field collapses as the old current approaches zero and reestablishes itself with opposite polarity as the new current reaches maximum.
How are sprinkler systems wired?
The solenoid has two wire leads extending from it. One wire attaches to the “hot wire” that receives the 24 VAC from the controller while the other wire attaches to a “common wire” that acts as a neutral/return wire. The “common wire” is run in series and is connected to all the valves in your system.
Can solenoids be reversed?
The solenoid itself is simply a coil of wire with no directional components (e.g. a diode), so it can simply be reversed in the circuit to generate the magnetic field in the opposite direction, or you can reverse the direction of the current traveling through the solenoid.
What is the master valve on a sprinkler system?
A master valve is a “normally closed” valve installed at the supply point of the main line that opens only when the controller initiates a watering program. Whenever one of the irrigation zone valves is told to open by the controller, the controller also signals the master valve to open.
What wire is used for sprinkler valves?
Most residential and light commercial irrigation designs specify 14-gauge wire for electric control valves and 12- or 14-gauge wire for the controller. Smaller gauge wire might be appropriate for small, tight projects.
Can sprinkler wire be buried?
Sprinkler wire can generally be buried directly in the ground without conduit and you don’t necessarily need to dig it below grade. A shallow burial is fine.
What position should sprinkler valves be in?
Locate your sprinkler valve boxes in or above the ground level. Most professionals install the valves in a box at ground level in the lawn or above ground level in a flowerbed so they are not obstacles when mowing the lawn.
Why is my sprinkler valve not shutting off?
It is possible that the sprinkler valves need a good cleaning since dirt and debris can get trapped in the valve and cause problems. So, for a little DIY practice, check to see if the valves are clogged. If the valves are clean, check to see if they are cracked or broken.
